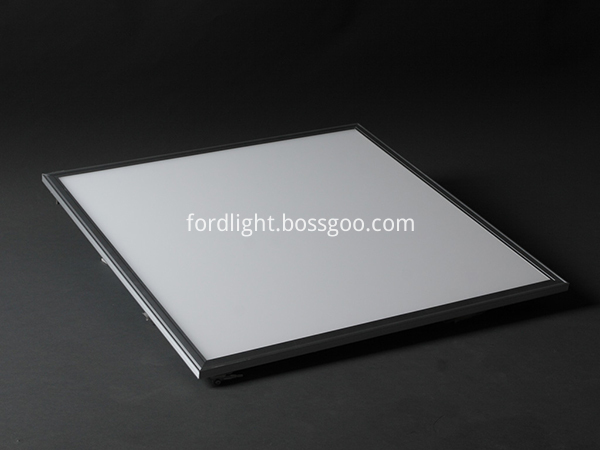

Trump Lighting Flat LED Panel Light
FEATURES :

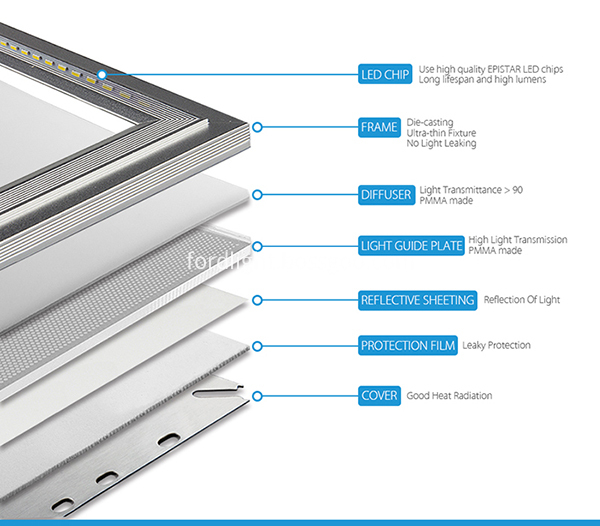

1. Super bright SMD2835 LED as lighting sources; high efficiency energy Saving Eco friendly;2. Aluminium alloy frame with high thermal conductivity simple and nice;
3. Integrated heat dispersion structure low lumens depreciation and long lifespan;

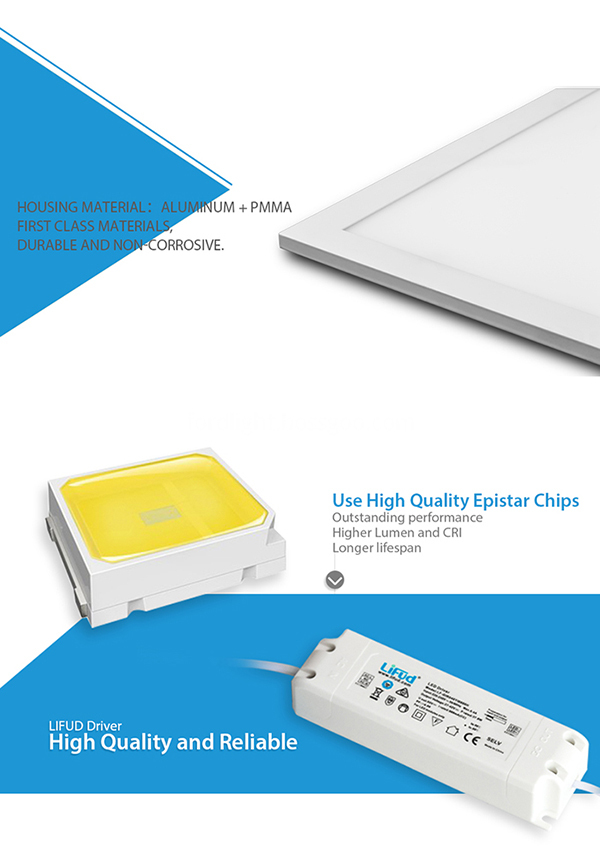

4. External constant current driver universal available;
5. Easy to install.
TECHNICAL PARAMETER :
| Model | Dimension | Material | Working temperature | Lifespan | IP rate | Installation Method | Lighting Angle |
| LPL-001 | 300×300×8mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-002 | 300×300×12mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-003 | 300×600×8mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-004 | 300×600×12mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-005 | 300×1200×8mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-006 | 300×1200×12mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-007 | 600×600×8mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-008 | 600×600×12mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| LPL-009 | 600×1200×12mm | Aluminum + PMMA | -20℃ ~ 40℃ | 100,000H | IP40 | Embedded Hanging | 120° |
| Model | Input Voltage | power(±5%) | LED Q'ty / Type | PF | CRI | Light Efficiency(±10%) | CCT |
| LPL-001 | AC86~240v | 18watt | 88pcs/2835 | >0.9 | Ra>80 | 75 lm/watt | 2900~6500K |
| LPL-002 | AC86~240v | 18watt | 144pcs/2835 | >0.9 | Ra>80 | 70 lm/watt | 2900~6500K |
| LPL-003 | AC86~240v | 24watt | 180pcs/2835 | >0.9 | Ra>80 | 80 lm/watt | 2900~6500K |
| LPL-004 | AC86~240v | 28watt | 200pcs/2835 | >0.9 | Ra>80 | 75 lm/watt | 2900~6500K |
| LPL-005 | AC86~240v | 40watt | 220pcs/2835 | >0.9 | Ra>80 | 80 lm/watt | 2900~6500K |
| LPL-006 | AC86~240v | 46watt | 396pcs/2835 | >0.9 | Ra>80 | 75 lm/watt | 2900~6500K |
| LPL-007 | AC86~240v | 46watt | 396pcs/2835 | >0.9 | Ra>80 | 88 lm/watt | 2900~6500K |
| LPL-008 | AC86~240v | 46watt | 396pcs/2835 | >0.9 | Ra>80 | 80 lm/watt | 2900~6500K |
| LPL-009 | AC86~240v | 46watt | 396pcs/2835 | >0.9 | Ra>80 | 88 lm/watt | 2900~6500K |
APPLICATION:

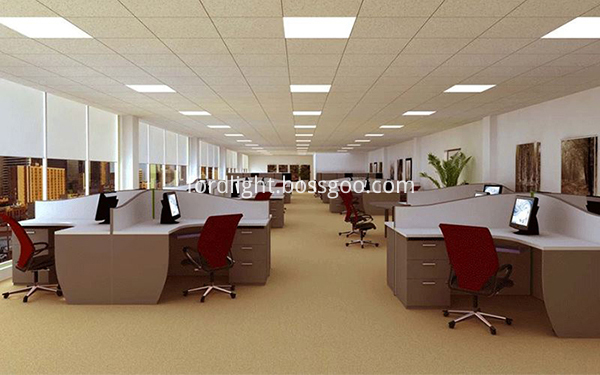

1. Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
3. Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
Light source: low power SMD LEDs (placed in the edge of the plate)
Quick reswn-designed LED driver with highponse when power on , no noise, no UV, no strobe light;
Adpot o power factort;
Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no strobe light, no pollution;
Conclusion: selection LED Panel Light should not only consider high luminous angle, but also consider energy-saving and luminous efficacy. According to LED Panel Light lifespan, luminous efficacy can well reflect LED Pane light whether energy-saving.
If you choose to 3535 SMD LED Panel Light as light source, emitting 5213lm with only use 60W power which means that our luminous efficacy is 87lm/W. If you choose to 5630 SMD LED Panel Light as light source, emitting 7041lm with only use 60W power which means that our luminous efficacy is 117.3lm/W.
